We are able to respond to the constantly evolving needs of our customers with a wide range of processes thanks to the vast modern fleet of machines that has recently been boosted.

CNC Horizontal Machining Center

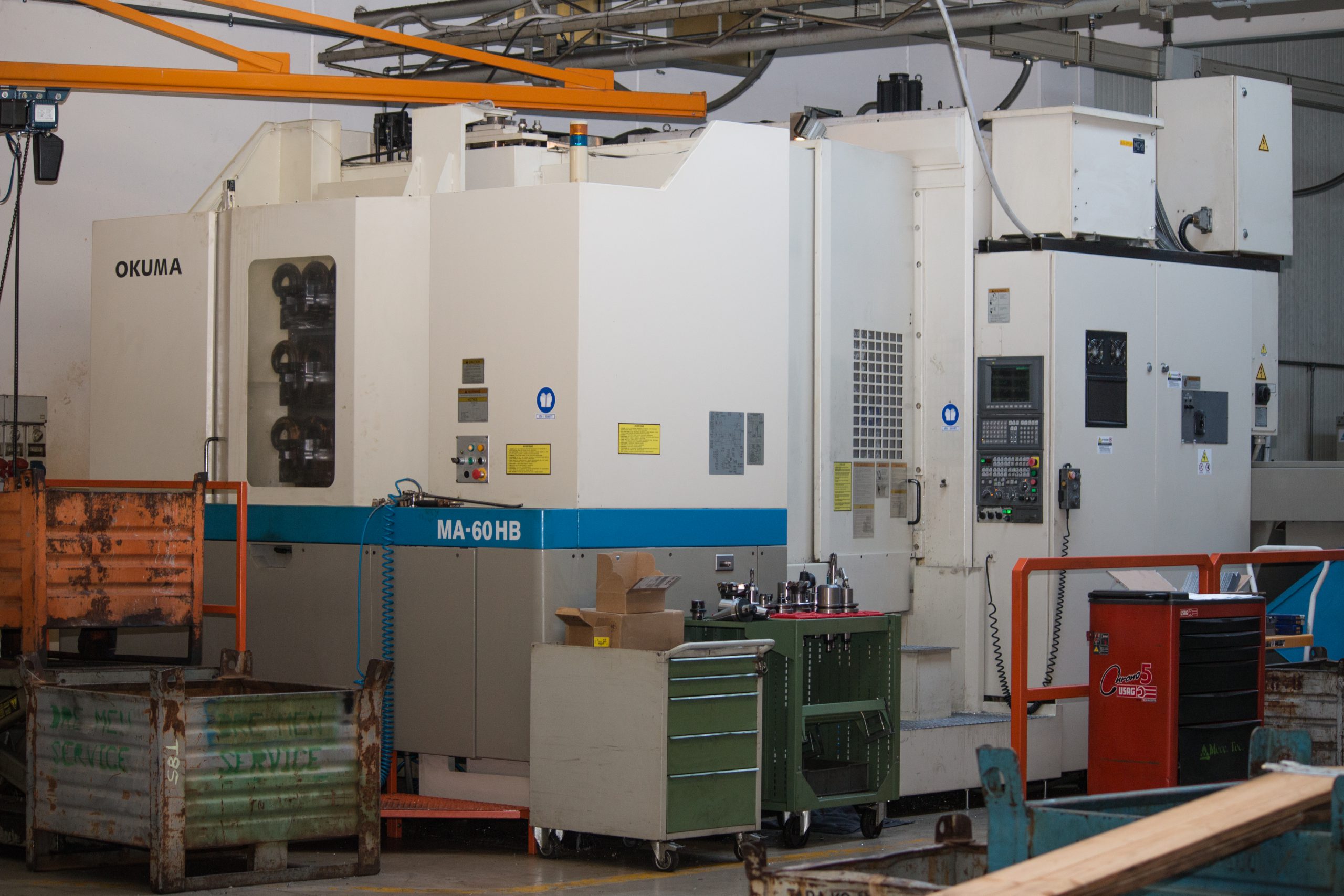

• N°1 CNC Horizontal Machining Center OKUMA mod. MA 60 HB allet changer axis travel X=990, Y=890, Z=800, table size 630×630, B axis, taper spindle BT50 10000 rpm with internal cooling, tool store for 60 tools
• N°1 CNC Horizontal Machining Center OKUMA mod. MA 600 HB pallet changer axis travel X=990, Y=890, Z=800, table size 630×630, B axis, taper spindle BT50 6000 rpm with internal cooling, tool store for 40 tools
• N°1 CNC Horizontal Machining Center OKUMA mod. MA 40 HB pallet changer axis travel X=500, Y=600, Z=500, table size 400×400, continuous B axis, taper spindle BT40 12000 rpm with internal cooling, tool store for 40 tools
• N°1 CNC Horizontal Machining Center OKUMA mod. MA 40 HB 6P pallet changer axis travel X=500,Y=600, Z=500, table size 400×400, continuous B axis, taper spindle BT40 12000 rpm with internal cooling, tool store for 40 tools
• no.1 CNC Horizontal Machining Center KITAMURA mod. HS300 SC 5 axis, 20 pallet, taper spindle ISO40 15000 rpm with internal cooling

CNC Vertical Machining Center

• N°1 CNC Vertical Machining Center HAAS mod. VF4 axis travel X=1100, Y=500, Z=640, taper spindle ISO40 8000 rpm with internal cooling, tool store for 18 tools

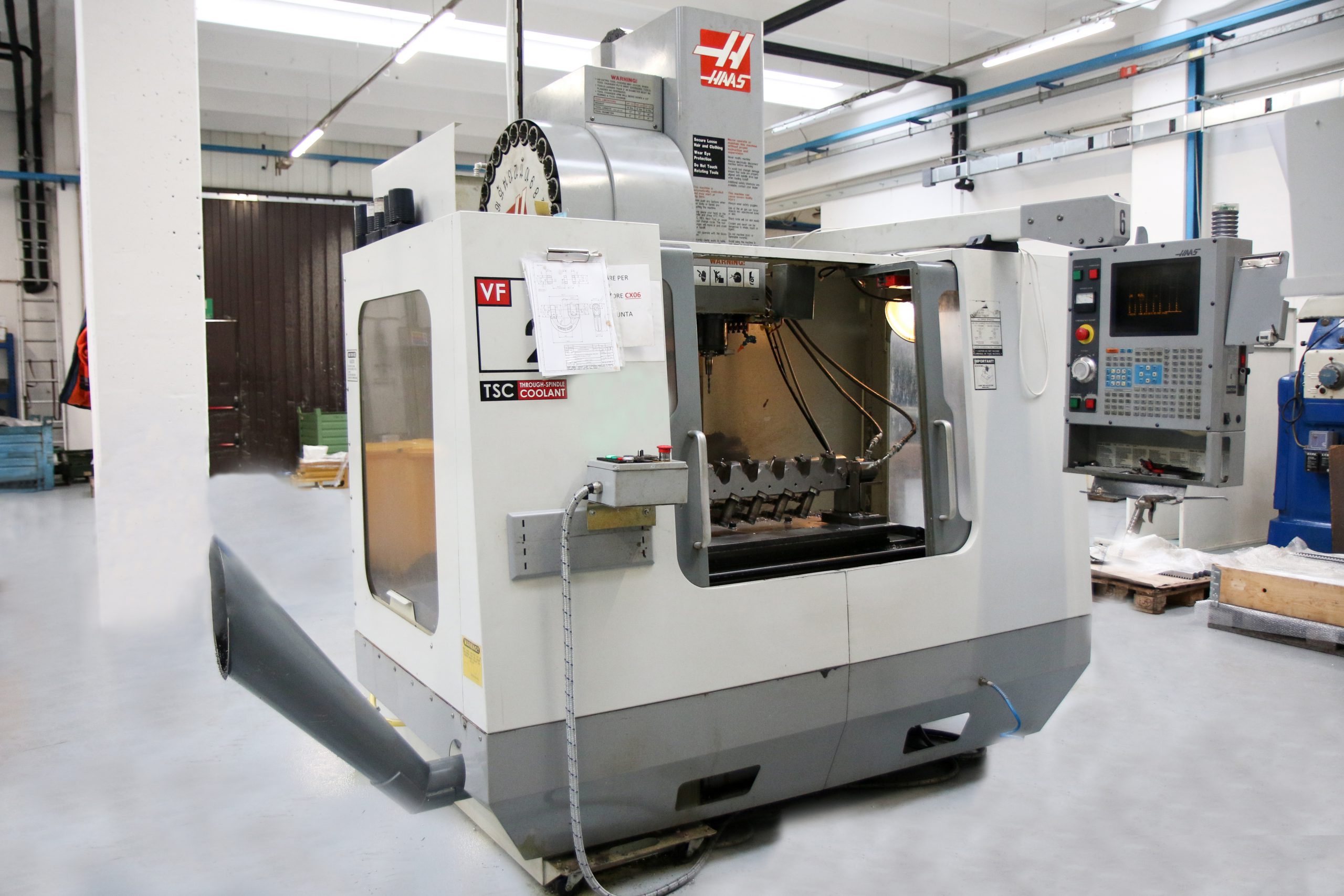

• N°1 CNC Vertical Machining Center HAAS mod. VF2 axis travel X=670, Y=450, Z=470, taper spindle ISO40 8000 rpm with internal cooling, tool store for 24 tools, with fourth rotary axis

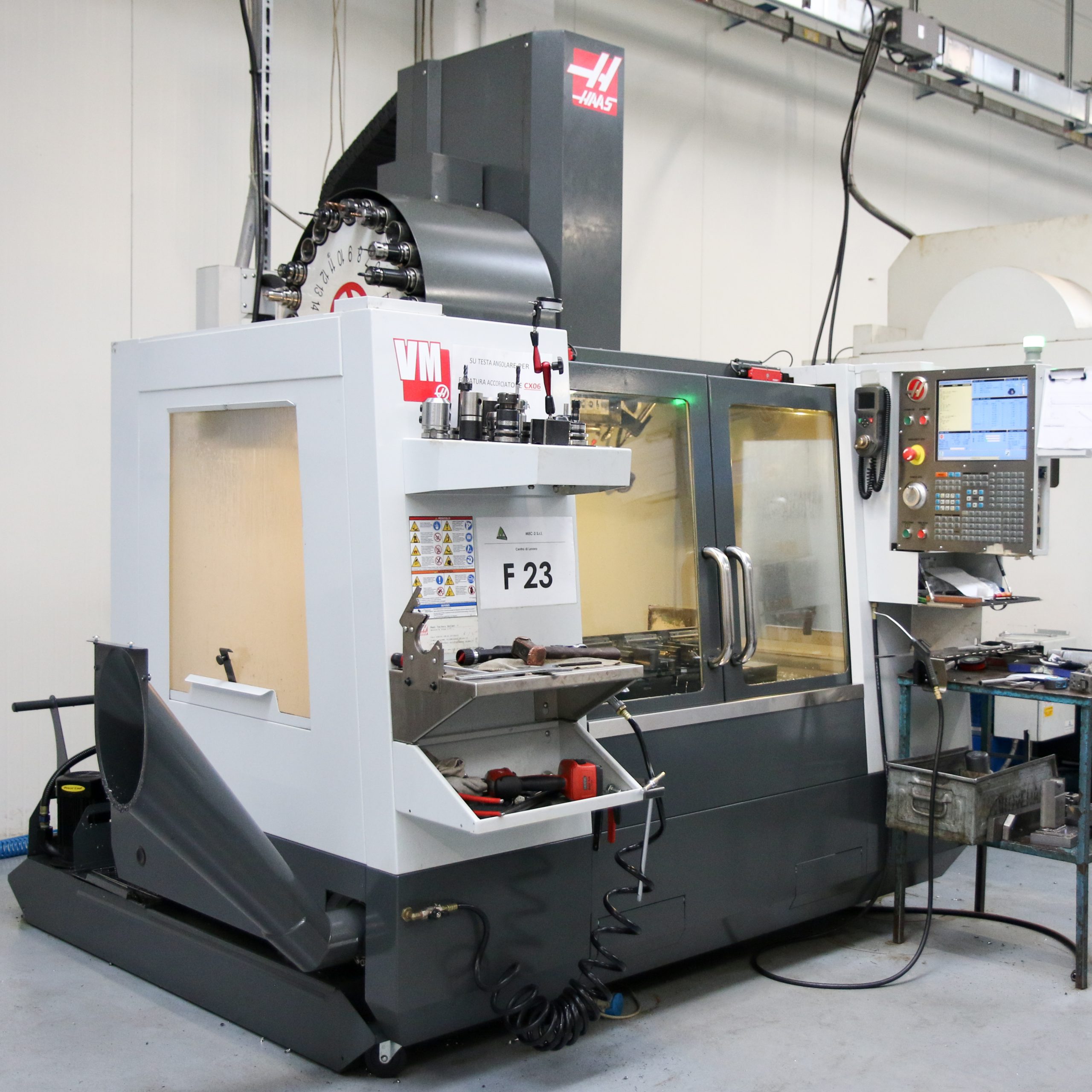

• N°1 CNC Vertical Machining Center HAAS mod. VM2 axis travel X=700, Y=450, Z=450, taper spindle ISO40 8000 rpm with internal cooling, tool store for 24 tools, with fourth rotary axis
• N° 1 Machining Center SERRTECH mod. B60 axis travel X=530, Y=295, Z=590, table size 650×350, taper spindle BT40 10000 rpm, tool store for 24 tools, with fourth rotary axis
• N° 1 Machining Center SHINRI V55 axis travel X=1000, Y=500, Z=550, table size 1300×550, taper spindle BT40 9000 rpm with internal cooling, tool store for 24 tools
• N°1 Machining Center EMCO FAMUP mod. MCX1000 pallet changer axis travel X=1000, Y=600, Z=640, table size 1000×450, taper spindle ISO 40 6000 rpm with internal cooling, tool store for 24 tools, continuous 4th axis
• N°1 Vertical Machining Center EMCO FAMUP mod MCP100E pallet changer axis travel X=1100, Y=500, Z=640, no. 2 tables size 1000×450, taper spindle ISO 40 10000 rpm with internal cooling, tool store for 24 tools
• N° 1 Machining centre QUASER MV184C pallet changer axis travel X=1020,Y=610, Z=610, table size 1200×600, taper spindle ISO40 12000 rpm with internal cooling, tool store for 30 tools
• N° 1 Machining centre OKUMA MA550VB pallet changer axis travel X=40 Y=40 Z=30, no. 2 tables size 1.300×560, taper spindle 12000 rpm with internal cooling, Spindle Power: 22 kW

CNC Lathes

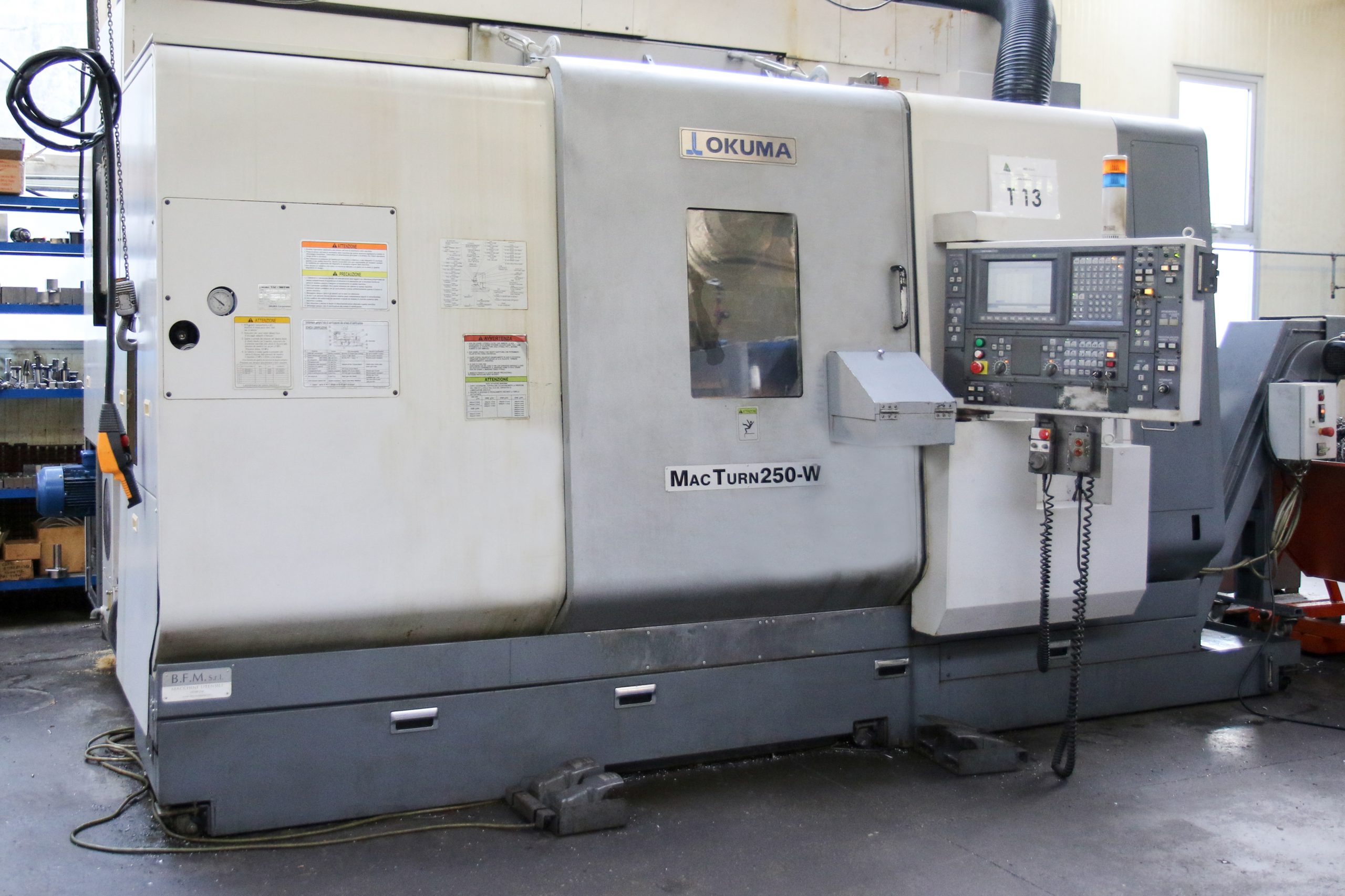

• N°1 CNC turning/milling lathe OKUMA mod. MACTURN 250-W double-spindle with C and Y axes, max. turning length = 1000, standard turning diameter = 320, max turning diameter = 500, no. 2 tool turrets (turning tools and rotating milling tolls) with B-axis, 50 positions tool store
• N°1 CNC lathe DOOSAN mod. PUMA TT1800SY double-spindle with C and Y axes, max. turning length = 600, standard turning diameter = 300, max turning diameter = 350, no. 2 tool turrets (turning tools and rotating milling tolls) with B axis, 24 motorized positions tool store;

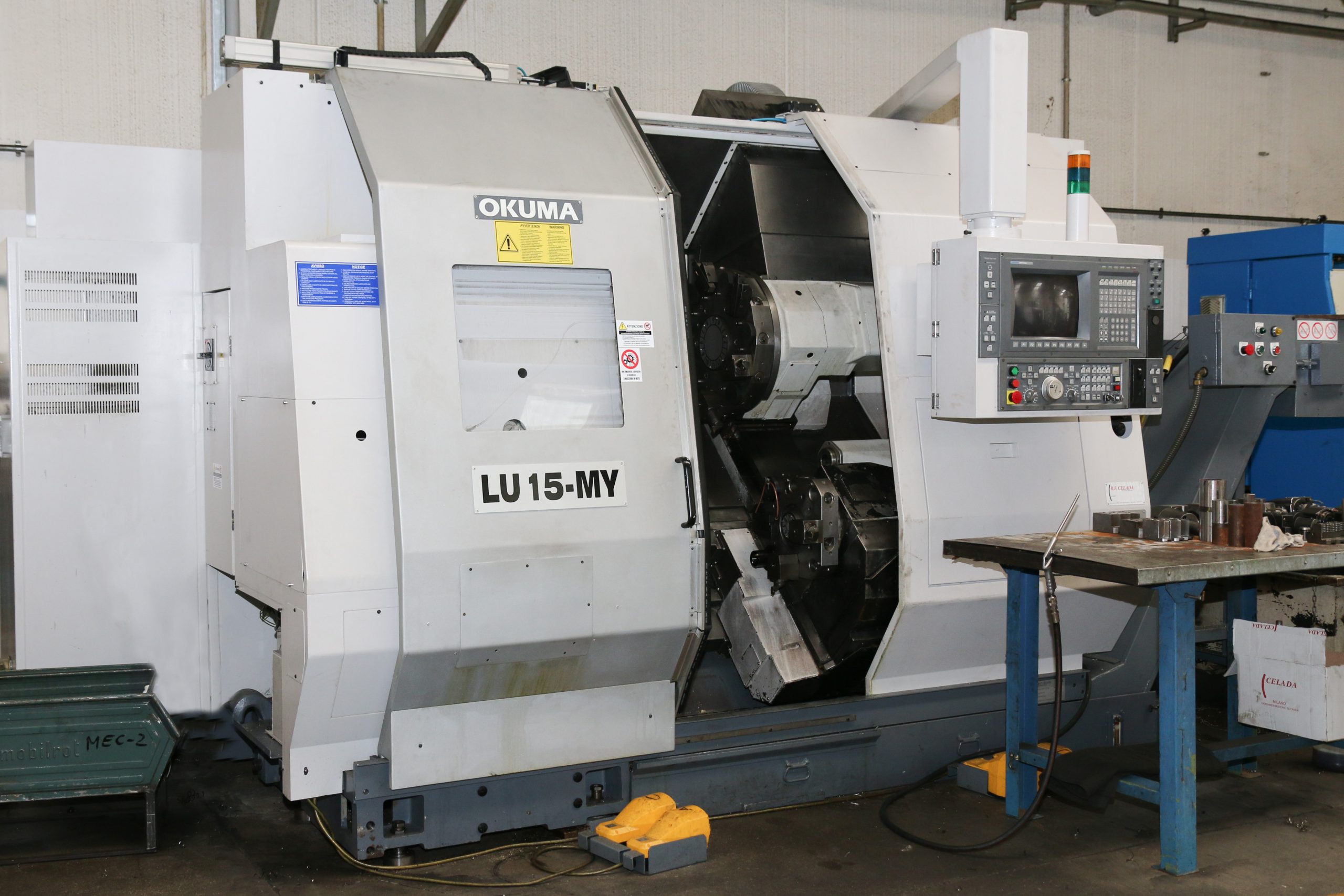

• N°1 CNC lathe OKUMA mod. LU 15 MY with C axis and motorized Y axis, max. turning length = 500, standard turning diameter = 200, max turning diameter = 250, tailstock, 50 positions tool store;
• N°1 dual-spindle lathe MORI SEIKI mod RL-203, turret head no.1, 8 positions, turret head no. 2, 8 positions, max turning diameter = 240 mm, GANTRY loader;
• N°1 dual-spindle lathe MORI SEIKI mod ZL200, bar capacity d=65 mm, motorized upper turret 12 positions, motorized lower turret 12 positions, spindle and counter spindle with C axis;
• N°1 dual-spindle lathe BIGLIA mod B56S2, bar capacity d=65mm, motorized upper turret 12 positions, motorized lower turret 12 positions, machined parts unloader, spindle and counter spindle with C axis, loader LNS PRINT, no. 2 collet chucks;
• N° 1 second position lathe GOODWAY mod GS280MYS, bar capacity d=70, motorized upper turret 12 positions, machined parts unloader, spindle and counter spindle with C axis, Y axis, loader LNS PRINT, no. 2 collet chucks;
• N°1 Swiss lathe GILDEMEISTER mod GD32, 5 axes, bar capacity d=32, no. 3 motorized positions, counter spindle with 8 positions and loader LNS minisprintS2;
• N°1 vertical lathe COMAU dual-spindle, no. 2 turret with 6 positions, max turning diameter d=650
• N°1 CNC Lathe for turning HAAS SL40, self-centering chucks at Ø381mm, turn. max. diam.=648mm, turn. max. length=1.118mm, bar capacity D=116mm, X=422 Z=1.118, Asse X/Z rapido= 18/M/min, spindle speed 24-2.400 rpm, Spindle Power: 30KW, 10-slot tool turret, tapered tailstock = Mt-4, tailstock body stroke = 1.118Mm
• N°1 CNC Lathe for turning HONOR VL-66Ai mod. FANUC 31i-T, upper turret 12 positions,spindle speed 25-1.500, table size 760×700, Spindle Power: 30/37 KW, ASA 11

Equipment

• N°. 2 automatic hacksaw
• N° 1 conventional milling machine
• N° 1 surface grinding machine MEAGERLE travel axis x=600 mm
